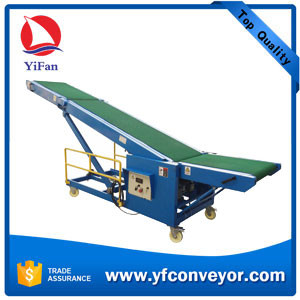

Name: Foldable mobile loading unloading belt conveyors for warehouse with limit space
Brand: YiFan
Price: 1 USD

Product Details
Company Profile

Foldable mobile loading unloading belt conveyors for warehouse with limit space

Description

Foldable mobile loading unloading belt conveyors for warehouse with limit space is a senior type of model TLC.It owns all the functions of TLC and also be folded for dispatch and storage.This conveyor is perfect for crowded warehouse to stuffing and loading trucks.

Specification

Model	Belt Width	Lift Height	Variable Speed	Max.Load	Belt Motor	Lift Motor	Power Supply
TLC-F600	600mm	700-2500mm	10-20m/min	50kg/m	1.5kw	2.2kw	380/220/110V

Features

Adopt 600mm width 5mm thickness high grip green PVC belt
Height adjustable from 700mm to 2500m(Automatic or by manual)
Belt speed variable from 10 to 20 m/min
Frame construction manufactured from 3mm thickness steel plate,painted surface treatment.
Easy to movable around on 150mm heavy duty swivel lockable casters
Can also be fixed to certain place by tighten the two threaded knobs between the two casters
Automatically stop by limit switch when lifting up and down
Independent electric cabinet includes OFF/ON,Emergency Stop, Forward/Reverse,Up/Down,Stop,Speed Knobs.
CPG motors,DELTA inverter,SCHNEIDER electrical elements
Power supply options 220V single phase 50Hz or 380V three phase 50Hz,110V also available.
The small flat belt section can be put down to be a slope.
Easily to connect to other flexible conveyors,belt conveyors and roller conveyors.

Contact Us

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Email: sales@yfconveyor.com

Web: http://www.yfconveyor.com

Tel:+86 574 8630 1900

Fax:+86 574 8630 1900

Mob:+86 139 5824 8487

FAQ

Can this conveyor be operation in two way LOADING & UNLOADING?
YES
Is the speed controllable?
YES
How many KGS can this conveyor carry?
50KGS per square meter
What products can this conveyor be used to load?
Cartons,boxes,bags,parcels,packages,etc.
What is the Max.lift height of the conveyor?
2.5m from conveyor top to the floor
Can you increase the height of the belt conveyor
YES,we have optional height of 2.8m
Can you change the screw lift to hydraulic lift?
YES
Is this manual lift up and down type?
YES
Do you have AUTO lift up and down type?
YES
Can we add a front tongue same as model TLC-P600?
NO,the foldable part can not hold the tongue.
Can we add other flexible conveyor to it at the floor level?
YES
Need how many people to move the conveyor from one door to another?
TWO
Can we fix the conveyor in one place during loading and unloading operation?
YES
Can we use customized belt and motor?
YES
Can you make the voltage as per our requirements?
YES
Do you have smaller loading conveyor for vans?
YES
Can we use the conveyor for loading & unloading 40ft containers?
YES
Can we add guard at two side to avoid the products fall off?
YES
How do you dispatch this conveyor?
We will remove the front tongue and dispatch it in two parts.
How many countries have you sell this conveyor to?
UK,America,France,Canada,Russia,Romania,Chile,Jordan,Qatar,Kenya,South Africa,Iran,Pakistan,Vietnam,Philippines,etc.
How long is the delivery time?
25-30 days
How long is the warranty?
1 year
Do you supply OEM & ODM service?
YES
Do you have user’s guide and maintenance instruction?
YES
What are the necessary spare parts we should keep?
Belts,motors,inverter,buttons
