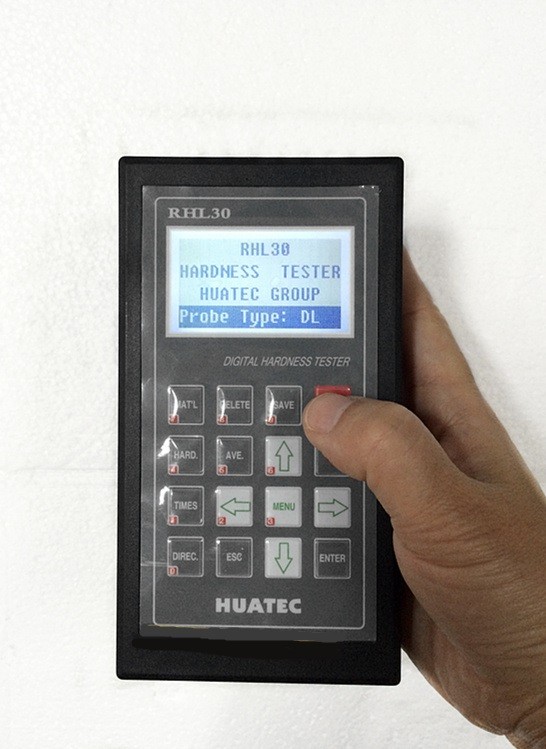

RHL30 Portable Leeb Hardness Testing Machine with back - light USB / RS232

LCD display of 128 × 64 matrix with back - light USB / RS232 Portable Leeb Hardness Testing Machine RHL30

Features LCD display of 128×64 matrix with back-light, showing all functions and parameters. Converts to all common hardness scales (HV, HB, HRC, HRB, HRA, HS). English displaying and easy and convenient menu operation. Powerful PC Software available and USB 2.0 interface. 7 types of Impact Device optional, which need not to be recalibrated when changing them. Memory of 600 groups data(impact times:32～1). Lower limit setting and sound alarm. Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece. Printer be separated from main unit and copies of testing results can be printed as required. In-built Smart Li lon rechargeable battery while USB connected and charging controlling circuit. Inbuilt function of Software Calibration. Two ways of switching off by key and automatically

Specifications of hardness tester

Hardness scale HL, HB, HRB, HRC, HRA, HV, HS

Memory 48～600 groups (impact times: 32～1)

Measuring range HLD(170～960)See below table 1 and table 2

Accuracy ±6HLD (760±30HLD) error of displayed value

6HLD (760±30HLD) repeatability of displayed value

Standard Impact Device D

Optional Impact Devices DC/D+15/G/C/DL

Max. Workpiece Hardness 996HV(For Impact Devices D/DC/DL/D+15/C)

646HB(For Impact Device G)

Min. Radius of Workpiece (convex/concave) Rmin = 50mm (with special support ring Rmin= 10mm)

Min. Workpiece weight 2~5kg on stable support

0.05~2kg with compact coupling

Min. Workpiece thickness 5mm (Impact Devices D/DC/DL/D+15)

1mm (Impact Device C)

10mm (Impact Device G)

Min. thickness of hardened surface 0.8mm

Power Rechargeable Li lon battery 3.7V/600mA, 4 years life time

Continuous Working time approx. 100 h (no back light off)

Charging time 2-3.5 h

Operating temperature 0~40℃

Relative humidity ≤90%

Overall dimensions 152×84×34mm (main unit)

Weight 0.3kg (main unit)

Main Application of portable handheld leeb hardness tester

l The assembled machinery and permanently installed parts

l Die cavity of molds

l Heavy work piece

l Failure analysis of pressure vessel, steam turbo-generator set and other equipment

l Narrow testing space where work piece installed

l Bearings and other parts

l Cases which require the test result with normalized original recording

l Material identification of the metal material warehouse

l Quick tests of large range and multipoint measuring positions for heavy workpiece

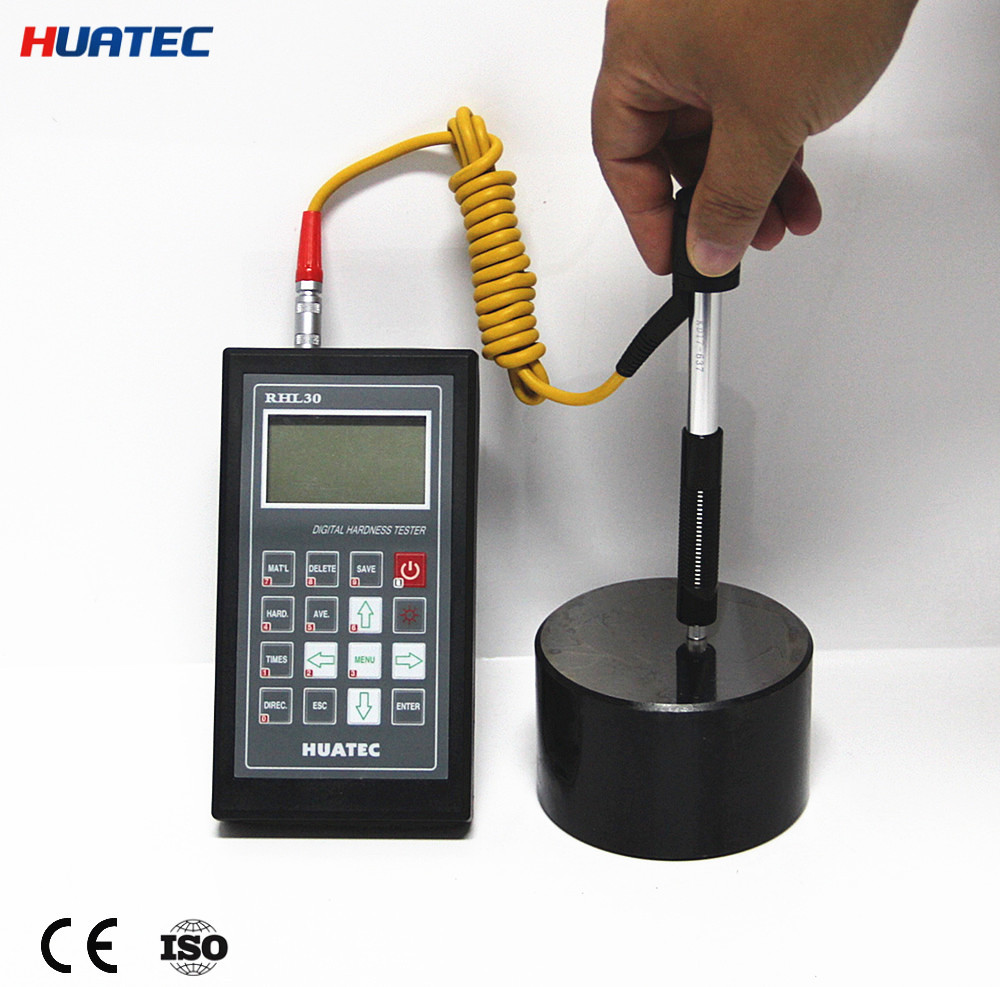

Standard delivery of portable leeb hardness tester RHL30
● Main unit

● Impact Device type D
● Test block with HLD value
● Charger

● Nylon brush

● Small supporting ring

● DataView Software

● USB&RS232 Communication cable
● Calibration Certificate
● Instruction manual

● Warranty card

● Carrying case

Optional accessories of portable leeb hardness tester RHL30

● Optional Impact Devices DC/D+15/G/C/DL
● Normal and special type support rings (14pcs)

● Other test block (High, medium and low value))

● Printer

● Impact body

● Impact ball tip

● Tools for changing the ball tip

Testing range see table 1 and table 2.

Table 1

Material	Hardness method	Impact device
Material	Hardness method	D/DC	D+15	C	G	E	DL
Steel and cast steel	HRC	17.9～68.5	19.3～67.9	20.0～69.5		22.4～70.7	20.6～68.2
	HRB	59.6～99.6			47.7～99.9		37.0～99.9
	HRA	59.1~85.8				61.7～88.0
	HB	127～651	80～638	80～683	90～646	83～663	81～646
	HV	83～976	80～937	80～996		84～1042	80～950
	HS	32.2～99.5	33.3～99.3	31.8～102.1		35.8～102.6	30.6～96.8
Hammered steel	HB	143~650
Cold work tool steel	HRC	20.4～67.1	19.8～68.2	20.7～68.2		22.6～70.2
Cold work tool steel	HV	80～898	80～935	100～941		82～1009
Stainless steel	HRB	46.5～101.7
	HB	85～655
	HV	85～802
Gray cast iron	HRC
	HB	93～334			92～326
	HV
Nodular cast iron	HRC
	HB	131～387			127～364
	HV
Cast aluminum alloys	HB	19～164		23～210	32～168
Cast aluminum alloys	HRB	23.8～84.6		22.7～85.0	23.8～85.5
Brass(copper-zinc alloys)	HB	40～173
Brass(copper-zinc alloys)	HRB	13.5～95.3
Bronze (copper-aluminum/copper-tin alloys)	HB	60～290
Wrought copper alloys	HB	45～315

Table 2

No.	Material	HLD	Strength σ_b(Mpa)
1	Mild steel	350～522	374～780
2	High-carbon steel	500～710	737～1670
3	Cr steel	500～730	707～1829
4	Cr-V steel	500～750	704～1980
5	Cr-Ni steel	500～750	763～2007
6	Cr-Mo steel	500～738	721～1875
7	Cr-Ni-Mo steel	540～738	844～1933
8	Cr-Mn-Si steel	500～750	755～1993
9	Super strength steel	630～800	1180～2652
10	Stainless steel	500～710	703～1676

Function:

On-line measuring management

Various function keys of data test, store, read, delete, clear, print, input and output to excel etc.

PC Software sample
