| Categories | Controller Board for Arduino |
|---|---|
| Brand Name: | OEM |
| Model Number: | OKY2006-1 |
| Place of Origin: | China |
| MOQ: | 10 |
| Price: | $2.82-$3.20/piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 1000pcs per week |
| Delivery Time: | 3-5 work days |
| Packaging Details: | Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS) |
| Controller: | CH340G |
| Input Voltage (recommended): | 7-12V |
| Operating voltage (logic level): | 5V |
| Maximum input voltage limits: | 6V - 20V |
| DC Current per I/O Pin: | 40 mA |
| Digital IO pins: | 14 (of which 6 provide PWM output) |
| SRAM: | 2 KB |
| Clock Speed: | 16 MHz |
| Board Weight: | 5g |
| Cable Weight: | 25g |
| 1 pair of TTL level serial transceiver ports: | RX / TX |
| Analog input pins: | 8 |
| Company Info. |
| Oky Newstar Technology Co., Ltd |
| View Contact Details |
| Product List |

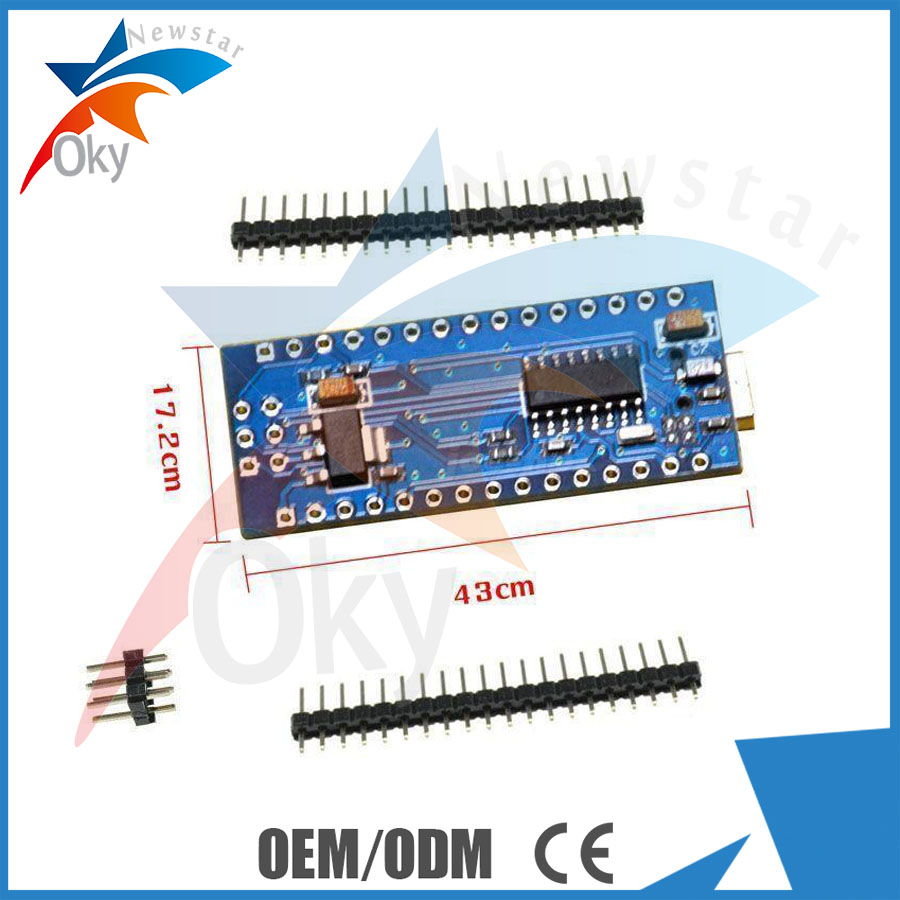

Atmega328P Nano V3.0 CH340G Development Board For Arduino , nano v3.0
Description:
| Name | Nano v3.0 ATMega328 16M 5V micro-controller CH340G board for UNO with USB cable |
| Controller | CH340G |
| Input Voltage (recommended) | 7-12V |
| Operating voltage(logic level) | 5V |
| Maximum input voltage limits | 6V - 20V |
| DC Current per I/O Pin | 40 mA |
| Digital IO pins | 14 (of which 6 provide PWM output) |
| 14DIGITAL Input/output ports | TX,RX,D2 ~ D13 |
| 6 PWM ports | D3, D5, D6, D9, D10, D11 |
| Analog input pins | 8 |
| SRAM | 2 KB |
| Clock Speed | 16 MHz |
| 1 pair of TTL level serial transceiver ports | RX / TX |
| Board Weight | 5g |
| Cable Weight | 25g |
| Features | CH340G USB bus converter chip replaces FT232RL Uses Atmel Atmega328P-AU MCU with bootloader installed Support USB download and Power over Mini-B Mini USB connector Supports ISP download Supplied with connector pins (headers), not soldered to the board for user flexibility |
| Available With | It can be powered via the Mini-B USB connection, a 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. |
Factory Picture:
Our Team:
Awards:
Packing&Shopping:
Shopping Ways and Time Needed:
Competitive Advantages:
1. Convenient & Friendly Customer Service.
2. Low Prices Direct From Factory Suppliers.
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty.
6. Safe Shipping Way and Payment.
FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
|
