| Categories | PVC Extrusion Machine |
|---|---|
| Brand Name: | Fuchuan |
| Model Number: | FC-40+35-1 |
| Certification: | ISO9001:2008 |
| Place of Origin: | China JiangSu |
| MOQ: | 1set |
| Price: | USD33300 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500SETS/YEAR |
| Delivery Time: | 45days |
| Packaging Details: | normal packing |
| color: | sky blue |
| pay off bobbin: | Dia 500/630mm |
| Material: | electrical wire/power wire/insulated sheathing wire |
| screw dia: | 40/50/60/70/80/90 |
| max speed: | 500m/min |
| type: | computer control |
| Company Info. |
| Kunshan Fuchuan Electrical and Mechanical Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

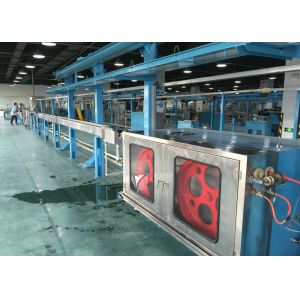

Insulating Sheathed Electrical Wire / Power Wire extrusion machine , computer control
Electrical wire, power wire extruder line
Usage:
Apply for produce the electrical wire, power wire, insulated sheathing and other wire&cable.
Specification:
| Model | FC-40 | FC-50 | FC-60 | FC-70 | FC-80 | FC-90 | |
| Screw Diameter | Φ40 | Φ50 | Φ60 | Φ70 | Φ80 | Φ90 | |
| Screw L/D Ratio | 26:1 | 26:1 | 26:1 | 26:1 | 25:1 | 25:1 | |
| Feed wire type | Active pay off or tension pay off | ||||||
| Max speed(m/min) | 300 | 400 | 500 | 500 | 200 | 200 | |
| Extrusion output | 40 | 70 | 100 | 150 | 200 | 250 | |
| Power for main machine(KW) | 11 | 15 | 18.5 | 22 | 30 | 37 | |
| Wire diameter | Φ0.5-3.0 | Φ0.6-4.0 | Φ0.8-8.0 | Φ1.5-12 | Φ5.0-20 | Φ6.0-25 | |
| Max accumulator length(m) | 220 | ||||||
| Accumulator | Horizonal accumulator | ||||||
| Cooling channel | Folding W type | ||||||
| Capstan diameter | Φ340 | Φ410 | Φ410 | Φ510 | Double wheel capstan or caterpillar capstan | ||
| Capstan power | 2.2KW | 3.7KW | 3.7KW | 5.5KW | 7.5KW | 7.5KW | |
| Take up power | 3.7KW | 3.7KW | 5.0KW | 7.5KW | 7.5KW | 7.5KW | |
| Take up type | Double shaft take-up or shaftless take up | ||||||
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
|
