Product Details
Company Profile

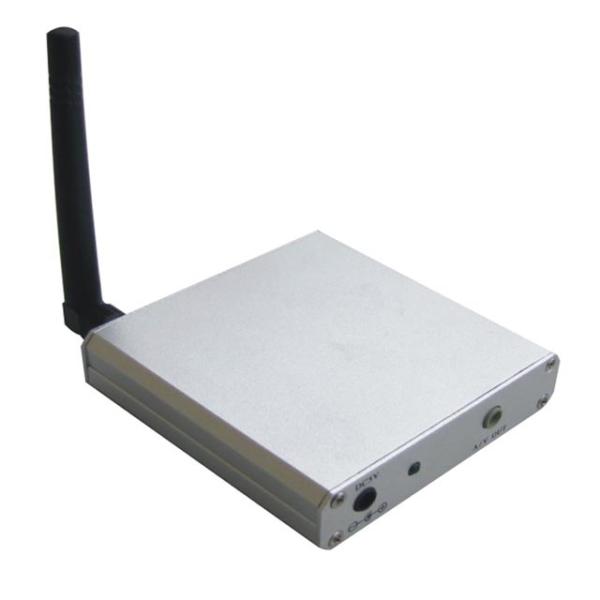

2.4GHz Wireless A/V Receiver

Basic Operation

3. Channel Mode:

1) 2.4G channel mode switch:

How to Use:

Just as above diagram shows: Connect antenna with main body; connect receiver to power supply by AC adapter; then connect receiver with TV/Monitor by AV cable. Set receiver into same channel mode with the ones of wireless camera. Switch on TV/Monitor, the video & audio from wireless camera will be received.

Note: The frequency type of receiver should be the same with the one of camera.

Specifications :

Receiving Frequency	2.4G: 2370~2510MHz; 5.8G:5645~5945MHz
Audio subcarrier frequency	2.4G/ 5.8G: 6.0MHz & 6.5MHz
Demodulation Type	FM
Antenna	50ohm SMA
Receiving Sensitivity	≤ -85dBm
Video Output Level	1Vp-p@75ohm, S/N>38dB
Audio Output Level	1Vp-p@1Kohm
Power Supply	+5VDC
Consumption Current	180mA
Dimensions(WDH)	686916(mm)(Excluding antenna)
Weight	80g
Operating Temperature	10 C~+50 C/+14 F~+122 F
Operating Humidity	85%RH
