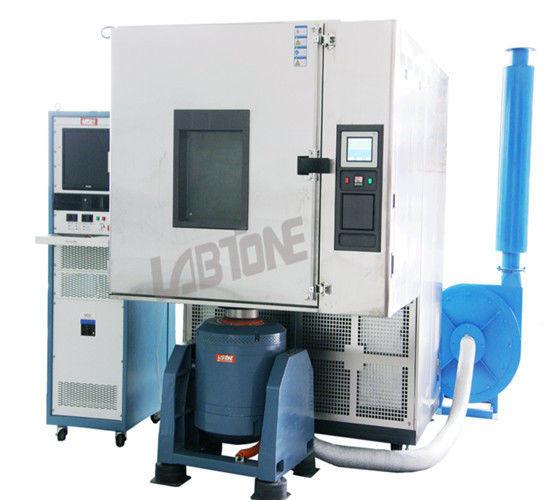

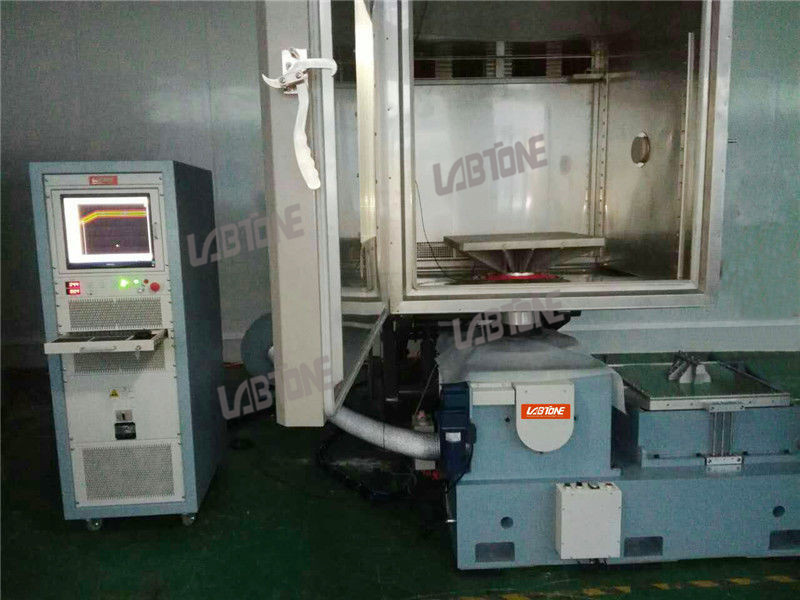

Temperature Humidity Vibration Combined Climatic Test Chamber Manufacturer

We are always focused on the latest development of reliable testing technologies, and also value the importance of upgrading the technologies of the equipment. Requirement for “Environment Simulation” also helps the clients to realize the importance of vibration platform and test chambers provided by supplier. We can provide broad range of combined environment testing systems according to the clients’ requirements. For example: 3 to 4 integrated testing setup scheme (air-cooled vibration test system complimented by low pressure test chamber), multi-axis vibration test and latest testing technologies.

Features

• Independent control system: can complete high temperature, low temperature, constant temperature, constant humidity, vibration test and integrated test.
• Adopts portable track design to perform integrated or single element test easily.
• Our vibration test systems are compatible with international test chambers of different brands. Labtone is in charge of assembly and provide the clients with integrated environment test system of different specifications and performance.

Specifications

Main enviromental: Humidity, Temprature, Vibration
Vibration exciting force: 300kg.f~5000kg.f
Chamber dimension(inside):500*750*600mm 600*850*800mm
1000*1000*800mm 1000*1000*1000mm
Temprature range: -70~ +150℃(Max.)
Humidity range:20~98%R.H(Max.)
Vibration testing type:Sinusoidal vibration, random vibration, classical impact,resonance search and reside,sine-on-random
Any special requirement please feel free to contact us and we will try to realize it.

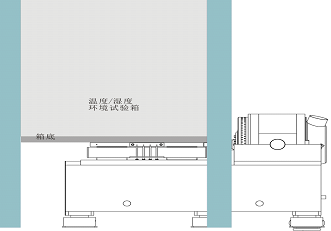

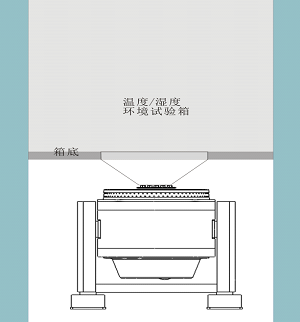

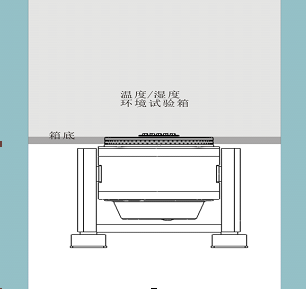

Connection mode:


Vibration test systems and test chamber connect directly


Vibration test systems and test chamber connect through transition connector


Vibration test systems and test chamber connect through the table
