| Categories | Fiber Optic Attenuator |
|---|---|
| Brand Name: | TTI/OEM/ODM |
| Model Number: | LC-LC |
| Certification: | ISO, SGS, ROHS |
| Place of Origin: | China |
| MOQ: | 25pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, , PayPal |
| Supply Ability: | 500000pcs/month |
| Delivery Time: | 2~3 days |
| Packaging Details: | Plastic bag |
| Connector Type: | LC |
| Mode: | Singlemode |
| Type: | Simplex |
| Ferrule: | Zirconia/Ceramic, Metal |
| Housing: | Metal, Plastic |
| Color: | Red, White, Black, Yellow color |
| End-face: | PC, UPC, APC |
| Structure: | Fixed |

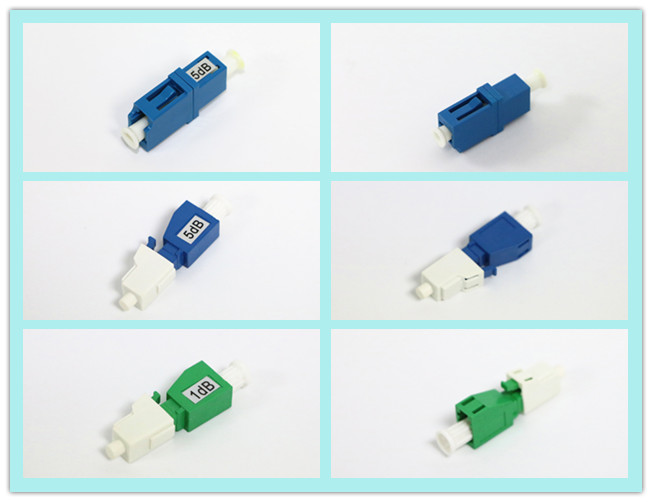

LC UPC 3dB Fixed Type Fiber Attenuator Low polarization loss
Description:
Description
LC Fiber Optical Attenuator is an electronic device that reduces the amplitude of an electronic signal.
Feature:
Bellcore Compliant
Wavelength Independent (DWDM)
Durability (well over 100mw)
Simple and Reliable structure
Application:
Telecommunication networks
Data Networks
Vidio & CATV
Specification:
| Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | ≥ 50 db (PC) |
| ≥ 55 db (UPC) | |
| ≥ 65 db (APC) | |
| Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
| +/-10% for 6 to 30db attenuation | |
| Polarization Dependent loss | ≤ 0.2db |
| Maximum optical Input power | 200mW |
| Operating Temp Range | -40 to + 80 degree |
Order Information:
| Connector Type | Application | Wavelength | Attenuation |
| FC SC ST LC MPO MU | PC UPC APC | 1310nm 1550nm 1310/1550nm | 1, 2, 3, ….., 25db |

|   |
