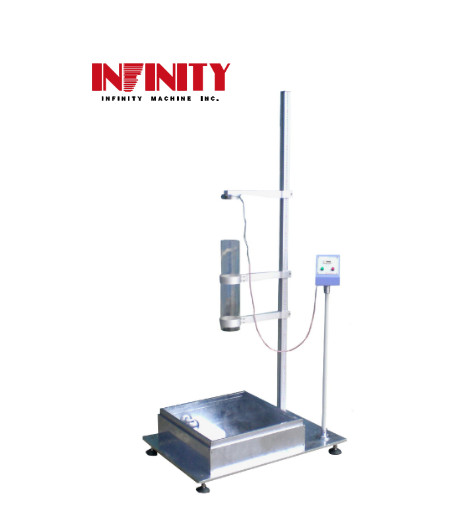

Laminated Glass Impact Testing Machine Architecture , Impact Test Equipment

Categories Impact Testing Machine
Brand Name: Infinity Machine
Model Number: RS-8220LQ
Certification: CE, ISO
Place of Origin: Made in China
MOQ: 1 set
Price: Negotiable
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Delivery Time: Shipped in 15 days after payment
Packaging Details: Standard export wooden case with operation manual and video inside.
Impact height: 600~1500mm adjustable
Impact steel ball: 1040g±10g(∮63.5mm), 2260g±20g(∮82.5mm)
Specimen size: 610x610mm
Steel ball falling direction: Vertically 90°±3°to the specimen
Sucking way: DC electromagnetic sucker
Dimension: 1000X700x2000mm
Weight: About 300kg
Power: AC220V 5A or specified by user
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Laminated Glass Impact Testing Machine Architecture , Impact Test Equipment


Laminated Glass Impact Testing Machine Architecture , Impact Test Equipment


Model: RS-8220LQ


Application:


This tester is design according to the standard GB/T9962-1999- 6.11, It satisfys the Architecture laminated glass impact testing requirement.


Standard:


JIS R 3205:1989,ISO/DIS12542 1,12543-6:1997,AS/NZS2208:1996,GB/T9962-1999

Specification:


ModelRS-8220LQ
Impact height600~1500mm adjustable
Impact steel ball1040g±10g(∮63.5mm)
2260g±20g(∮82.5mm)
Specimen size610x610mm
Steel ball falling directionVertically 90°±3°to the specimen
Counting cycles0~999,999times
Sucking wayDC electromagnetic sucker
Dimension (WxDxH)1000X700x2000mm
WeightAbout 300kg
PowerAC220V 5A or specified by user
