| Categories | excavator hydraulic compactor |
|---|---|
| Brand Name: | BEIYI |
| Model Number: | BYKC03 |
| Certification: | ISO, CE |
| Place of Origin: | China (Mainland) |
| MOQ: | 1 |
| Price: | 10000 |
| Payment Terms: | T/T, 30% deposit, balance before shipment |
| Supply Ability: | 10 sets per month |
| Delivery Time: | Within 20 days after receiving your payment |
| Packaging Details: | Wooden Box |
| Bottom Measurement: | 890*545*32mm |
| Pressure: | 100-130Kg/cm2 |
| Height: | 760mm |
| Weight: | 500kg |
| oil flow: | 85-105L/min |
| Carrier: | 3-9T |
| Condition: | new |
| Max.Vibration Frequency: | 2000Rpm |

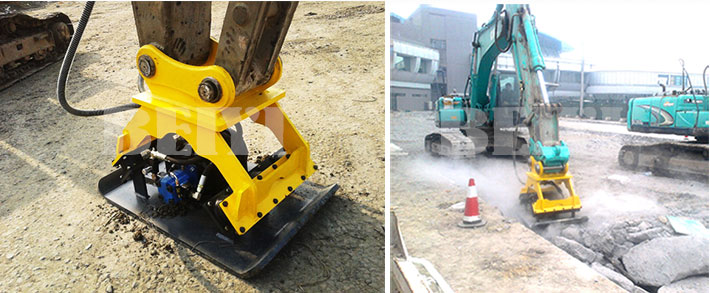

BYK series hydraulic compactor can be applicable to any position,such as horizon compaction,step compaction,bridge abutment,the trench pit compaction ,sub grade compaction,the corner turning point, backfill compacted,concrete pavement patching compacted,tube side compaction etc,our hydraulic compactor can also be used for pulling piles and broken when necessary.
1. strong frequency vibration

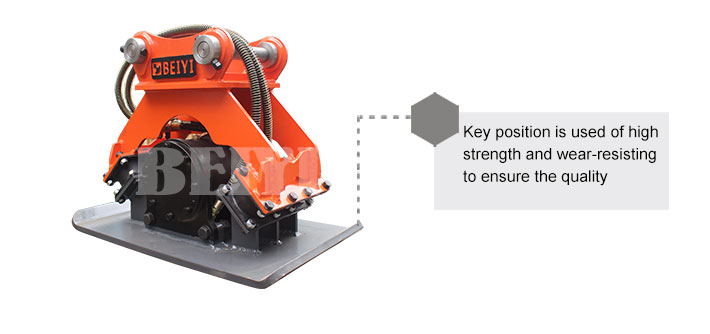

2. wear-resistant steel
4. frequency vibration is controllable
5. big contact area, high efficiency

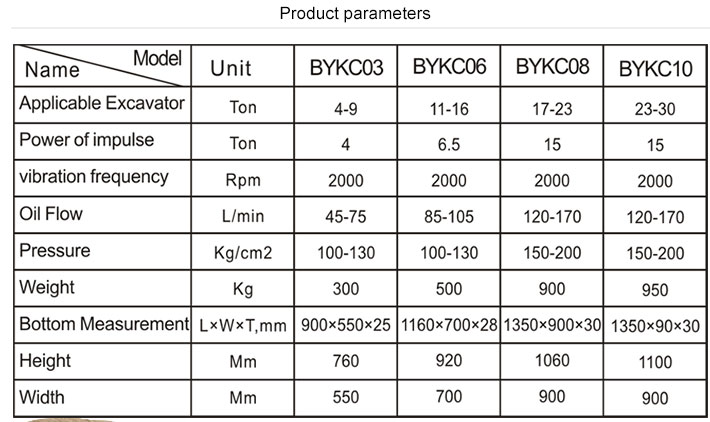

| Name | Unit | BYJC 03 | BYKC 06 | BYKC 08 | BYKC 10 |
| Carrier | Ton | 4-9 | 11-16 | 17-23 | 23-30 |
| Power of impulse | Ton | 4 | 6.5 | 15 | 15 |
| Vibration Frequency | Rpm | 2000 | 2000 | 2000 | 2000 |
| Oil Flow | L/min | 45-75 | 85-105 | 120-170 | 120-170 |
| Pressure | Kg/cm² | 100-130 | 100-130 | 150-200 | 150-200 |
| Weight | Kg | 300 | 500 | 900 | 950 |
| Bottom Measurement | LxWxT,mm | 900x550x25 | 1160x700x28 | 1350x900x30 | 1350x90x30 |
| Height | MM | 760 | 920 | 1060 | 1100 |
| Width | MM | 550 | 700 | 900 | 900 |
We packed with standard wooden box or as you request.
| *We accept L/C T/T and other payment terms according to actual situations. |
| *We accept different shipping lane, air express by DHL,FEDEX,TNT,EMS... |
| *The product delivery will be strictly on time. |
| *If you are interested in us or our products, welcome to contact us and visit our company. |
| *We will keep in touch with you to follow up the product's detail service situation and accept compliants, |
| clearly record and maintain it for further reference. |
Wuxi Beiyi Excavator Parts Factory, we are excavator parts factory, have 15 years experience, and a capable R&D team. Our product range includes hydraulic pile breaker, pile driver, hydraulic hammer, ripper, earth auger, hydraulic pulverizer, etc. With ISO9001 and CE certificates.
1. Q:How to chose the suitable model?
A: Please kindly advise your excavator weight or model, then we will help you to decide the suitable model.
2. Q: Is your excavator compactor dangerous for work?
A: Our machine operate contact-free and there is no impact force on the drill rod, so our machine is not dangerous for work.
3. Q:Is your size can be custome made?
A:Yes, we can custom made according to your requests.
4. Q:Do you offer after-sale service?
A: Yes, we will offer you machine operation instructions. 6 months of warranty time for the motor will be offered to our customer dating from the receipt day. Besides, we will offer life long technical instruction.
|
