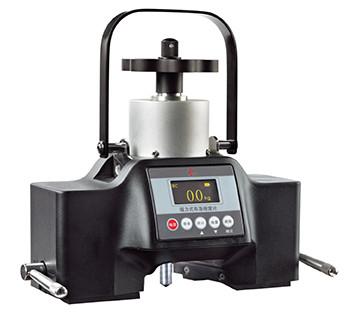

Magnetic Digital Portable Rockwell Hardness Tester Indenter Max Force 187.5Kgf

Magnetic Digital Portable Hardness Tester Brinell / Portable Rockwell Tester Max Force 187.5Kgf

Technical Data Download:
iqualitrol Brinell Rockwell Portable Hardness Tester PHBR-200

Technical Specifications:

Brief Introduction:

Magnetic Digital Brinell and Rockwell hardness tester, which can make accurate Brinell hardness test with conventional indentation method of ISO 6506.2 and ASTM E 10. It can also make rapid Brinell hardness test with depth-measuring method of ASTM E 103, and read hardness value directly.

At the same time it also can do Rockwell hardness test according to Rockwell hardness testing method in ISO6508-2 and ASTM E18. These functions can meet the demand of precise and rapid Brinell hardness testing on-site of large steel and iron parts.

Simplified operation of Rockwell hardness and depth-measuring Brinell hardness, only need to load the total test force remain for several seconds and then unload the total test force to finish the test, it is very simple and high efficiency.

This instrument stores an accurate basic hardness, that is depth curve made from plenty hardness blocks; it also stores several Brinell curves of common materials. We can supply the service of making precise Brinell curve of common material according to customers’ requirement. Advanced curve correction methods can be used to test a variety of special materials.

This instrument can check and calibrate the accuracy on-site by precise indentation method at any time.

iqualitrol is a professional company to supply quality control instrument and repair service. The main products are industrial video borescope, hardness testers, metallographical instrument, metallurgical microscopes, temperature test chambers, etc.

These are widely used in machinery, mold, metal, rubber, connectors, household appliances, printed circuit boards, medical equipment, and so on.

Our sales and service staff are well trained and experienced. They can give professional advice to customers and recommend suitable equipment according to specific requirement.
