Radio Frequency Identification Rfid Wet Inlay With s50 Chip For Label Or Tag

Categories NFC TAG
Brand Name: ANG
Model Number: AI-P1701
Certification: CE,ISO,SGS,RoHs
Place of Origin: Made in China
MOQ: 1000 pieces
Price: Depending on chip type
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100,000 pieces per month
Delivery Time: 2~15 days
Packaging Details: 100pcs/roll, 20rolls/box, 200pcs/box
Material: Paper, PET, PETG
Chip: MF S50
Frequency: 13.56MHz
Reading distance: 10cm
Size: 5.5*1.8cm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Radio Frequency Identification Rfid Wet Inlay With s50 Chip For Label Or Tag


Radio Frequency Identification Rfid Wet Inlay With s50 Chip For Label Or Tag


The RFID inlay is made of two parts. An integrated circuit or microchip that stores personal identifying information attaches to a small coil of aluminum, copper or silver wires called the antenna, which transmits and receives radio frequency signals. The microchip and antenna are then placed on a label, and the entire unit is encased in plastic. RFID wet inlays are passive RFID inlays with an adhesive backing that can be either applied to a product directly or converted into smart labels (integrated into a paper or plastic label). As any passive tag, RFID wet inlay includes an integrated circuit (IC) or chip that stores and processes tag data and an antenna, which gathers power from the reader to power the tag and enable RFID communication.


RFID Wet Inlays are comprised of two parts: an integrated circuit for storing and processing information, and an antenna for receiving and transmitting the signal. They are passive RFID Tags in that they have no internal power supply, and they are described as “wet” due to the adhesive backing. RFID Wet Inlays are best for applications where a low-cost “peel-and-stick” tag is needed. Any RFID Wet Inlay can also be converted into a paper or synthetic face label.


Wet Inlay
MaterialPaper, PET, PETG
Inlay Width5.5cm
Inlay Length1.8cm
Antenna Width5.2cm
Antenna Length1.5cm
Inlays per Roll1000 pieces per Roll
Overlay AdhesiveGeneral Purpose Permanent
Inlay AdhesiveGeneral Purpose Permanent
Adhesive Application Temperature-20℃~65℃
Adhesive Service Temperature-40℃~85℃

Features

  • Contactless transmission of data and supply energy
  • Operating distance up to 10cm depending on antenna geometry and reader configuration
  • Operating frequency: 13.56 MHz
  • Data transfer: 106 kbit/s
  • Data integrity: 16-bit CRC, parity, bit coding, bit counting
  • Anticollision
  • Typical ticketing transaction time of < 100 ms
  • 1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)
  • User definable access conditions for each memory block
  • Data retention time of 10 years
  • Write endurance 200,000 cycles

Applications


• Asset management

• File folder labels

• Shipping labels

• Corrugate cases

• Pallet cards

• Apparel hang tags

• Baggage tags

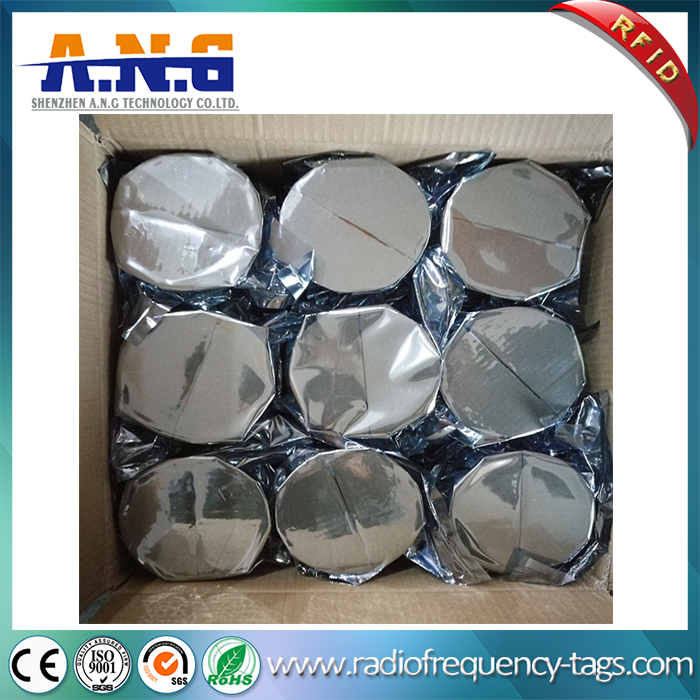

Package:



If you are interested in this inlay, please welcome to send us an inquiry!
