PLC Frequency Control PU Foam Roller Shutter Slat Machine With Guiding Column Forming Frame Structure

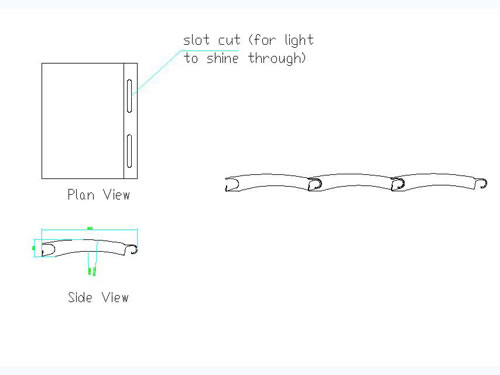

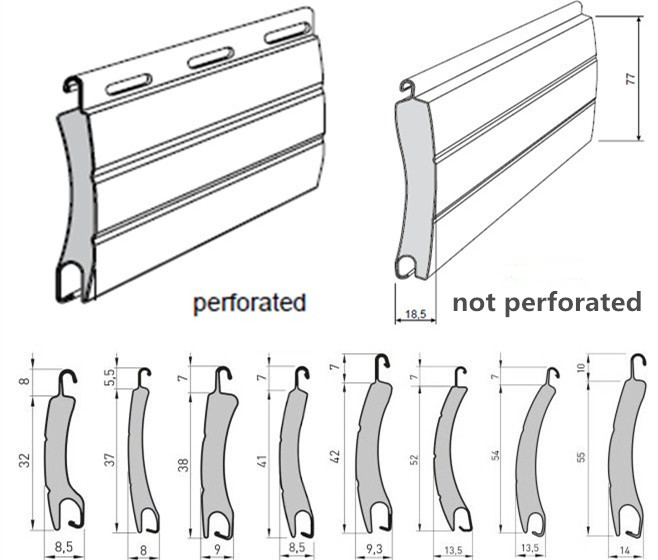

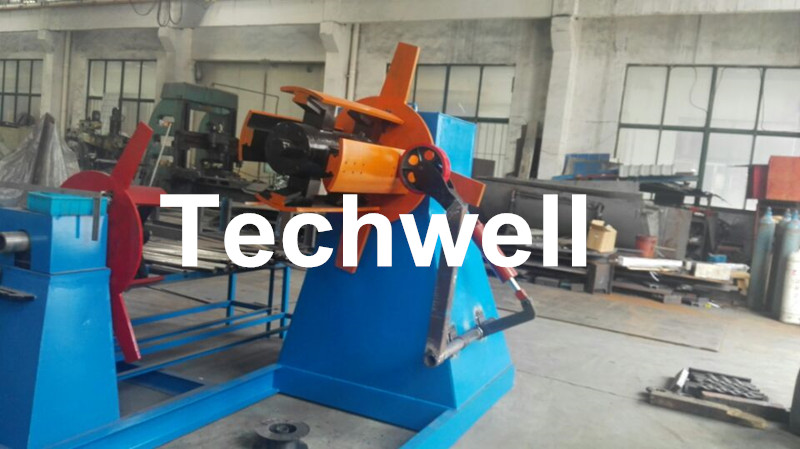

1). 3Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler

2. Weight capacity of decoiler: 3Ton

3. Manual expanding

4. Passive uncoiling

5. I.D: 508mm, 610mm

2). Feeding Guide

1. Function: It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after decoiling.

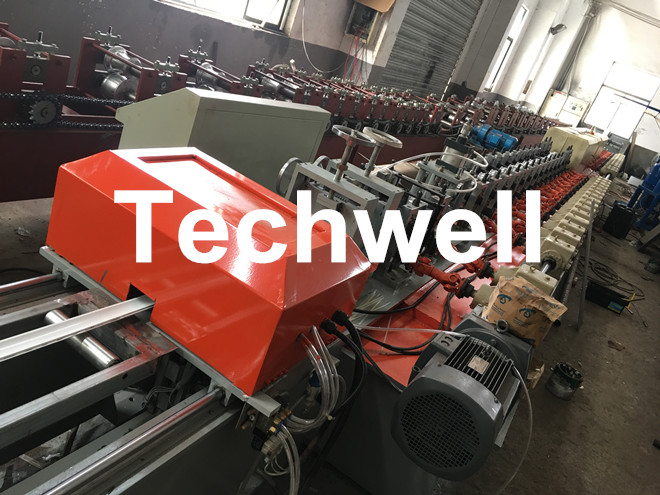

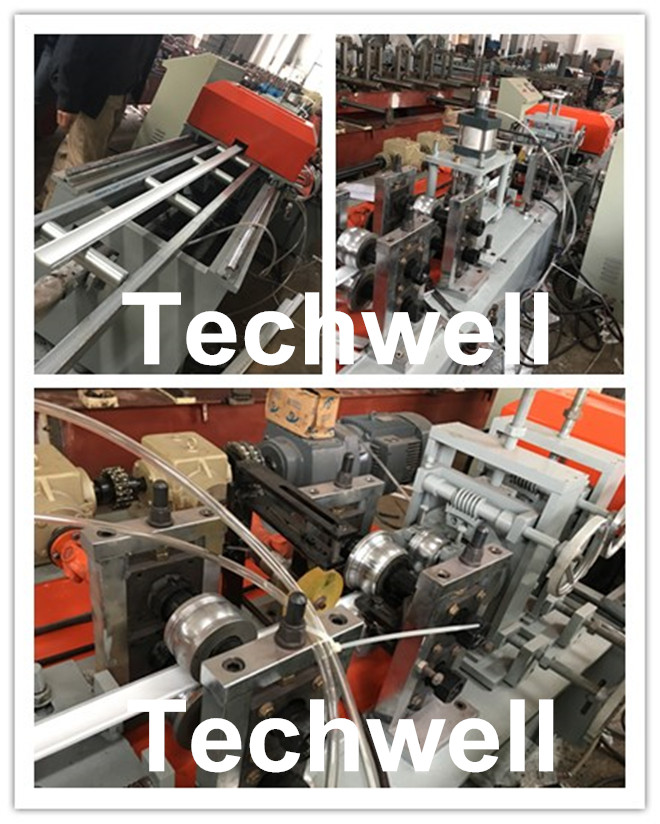

3). Main PU Foam Roller Shutter Slat Machine

1. It consists of machine frame, transmission parts and forming rollers etc.

2. Material Thickness: 0.3-0.8mm

3. Forming Material Type: Aluminum, GI. Carbon steel

4. Machine Frame Stand: Welded structural steel with shot blasting treatment

5. Shaft Diameter: 40mm or 50mm

6. Material of Shaft: High grade 45# steel with heat treatment

7. Roller Material: High grade GCr15, model steel, all treated by CNC precise machines, HRC50-54

8. Forming Stations: about 34 stations (depend on final design)

9. Forming Speed: 0-15m/min

10. Forming Motor: 7.5KW

11. Forming Structure: Guiding column

12. Transmission: Gearbox drive

13. Manually adjust the spaces and rollers can produce sheet of different thickness in a range.

4). Foaming Machine

1.PU Foam Machine: With two group " ISO / POLY "

2. Low-pressure foaming machine

5). Straighten Device

1. To straighten the profile

6). Pneumatic Punching Machine

1. Material of Cutter: Cr12Mov, quenched HRC58-62

2. Continuous punching

7). Servo Tracking Flying-saw Cutting

1. Servo tracking flying-saw cutting

2. Cutting Power: 2.2KW

3. Servo Power: 1.5KW

8). PLC Control System

1. Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.

2. Provide good man and machine screen, which can set the batches, plate length, and quantity.

3. Operation type: Touching screen + Button

4. Using encoder to calculate the number and measuring the length

5. Electrical control: PLC frequency control system with touch screen

6. PLC: PANASONIC Brand

7. Encoder: OMRON Brand

8. Size of PLC control board: 700mm (L) x 1000mm (H) x 300mm (W)

9). Run-out Table

1. It is used to support the finished panels

2. Teh table we supply is 2 pieces with length of 2000mm, it can support panels with 10000mm at normal condition

3. The frame of supporter is welded by square-steel

4. Simple non-power table type
