| Categories | European Size Button (86*86mm) |
|---|---|
| Brand Name: | CAMEL |
| Model Number: | S886D2S |
| Certification: | CE RoHS |
| Place of Origin: | China |
| MOQ: | 5pcs |
| Price: | reasonable factory-direct prices |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 40,000pcs per month |
| Delivery Time: | within 5 working days |
| Packaging Details: | paper box for each unit and carton box for 100pcs |

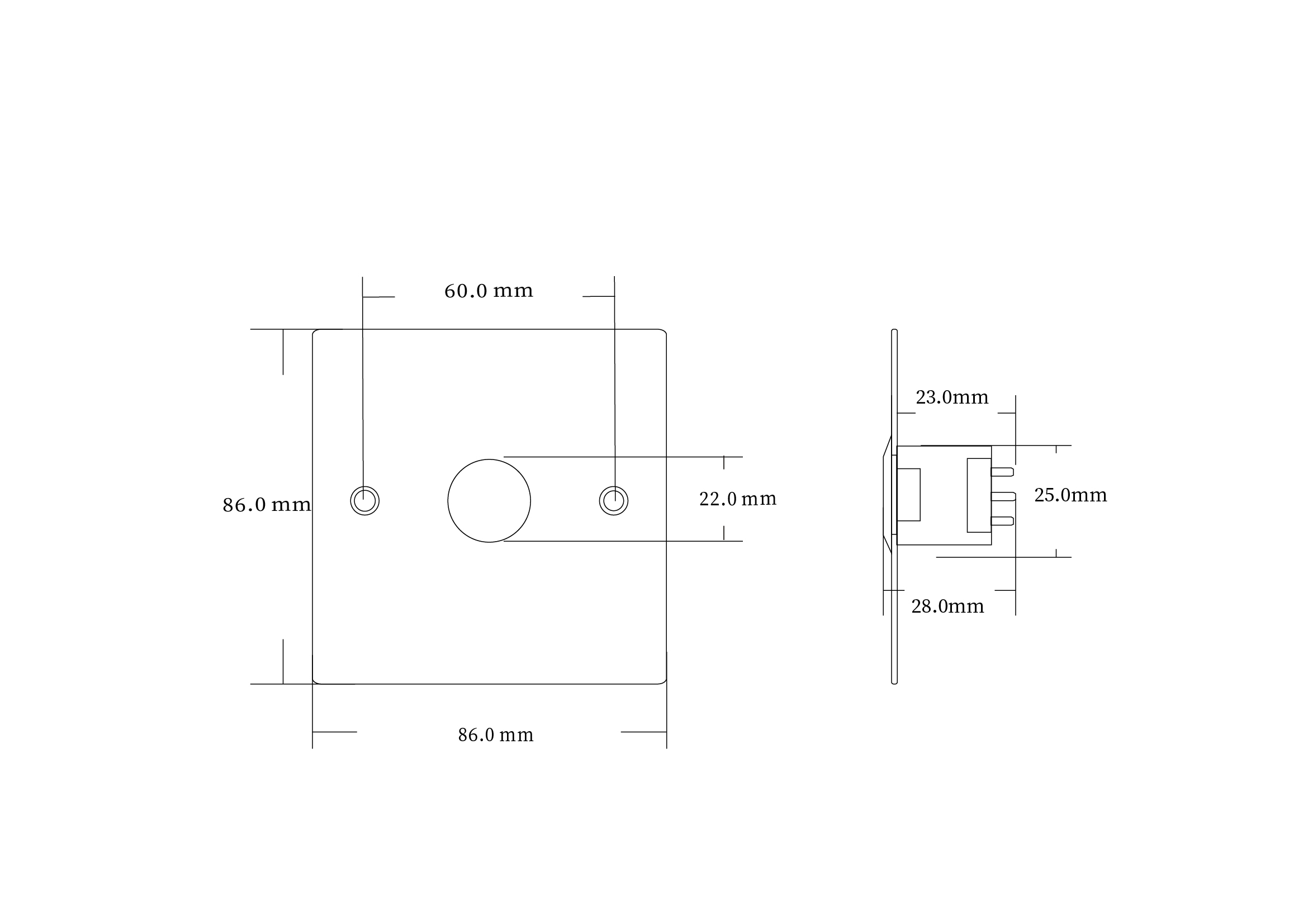

| Size: | 86*86*25mm |
| Product Name: | Push to Exit Button |
| Output Contact: | NO/NC/COM |
| Optional Accessories: | M86 Backbox |
| Standard Package: | 100pcs/15kg/50*45*24cm/ctn |
| Material: | Stainless steel Panel,Stainless Steel Button |
| Company Info. |
| SHENZHEN CAMEL SECURITY CO.,LTD |
| View Contact Details |
| Product List |
Stainless Steel Switch Button Push To Exit Button with big contact area
Products Key Words
push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control
Technical Parameter
| Parameter | Description |
| Size | 86*86*25mm |
| Standard Structure | Stainless steel, stainless steel Button |
| Panel Material | Stainless steel Panel, Sandblast Finished |
| Current | 3A @36V DC Max. |
| Output Contact | NO/NC/COM |
| Mechanical Life | 100,000 tested |
| Operating Temperature | -20‐ +55℃ (14-131F) |
| Operating Humidity | 0-95% (non-condensing) |
| Weight | 0.15kg |
| Package | 100pcs/50*45*24cm/11kg/ctn |
Product Introduction
S850D2S / S886D2S / S870D2S / S840D2S series button with big contact area is casted by stainless steel . It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years come. ANSI size is hot sell items in American countries as well as other countries at this size.
S886D2S series push to exit button is momentary SPDT with 3 cables included for NO (Normal Open), NC (Normal Close) and COM (Common),
Products Key Words
push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control

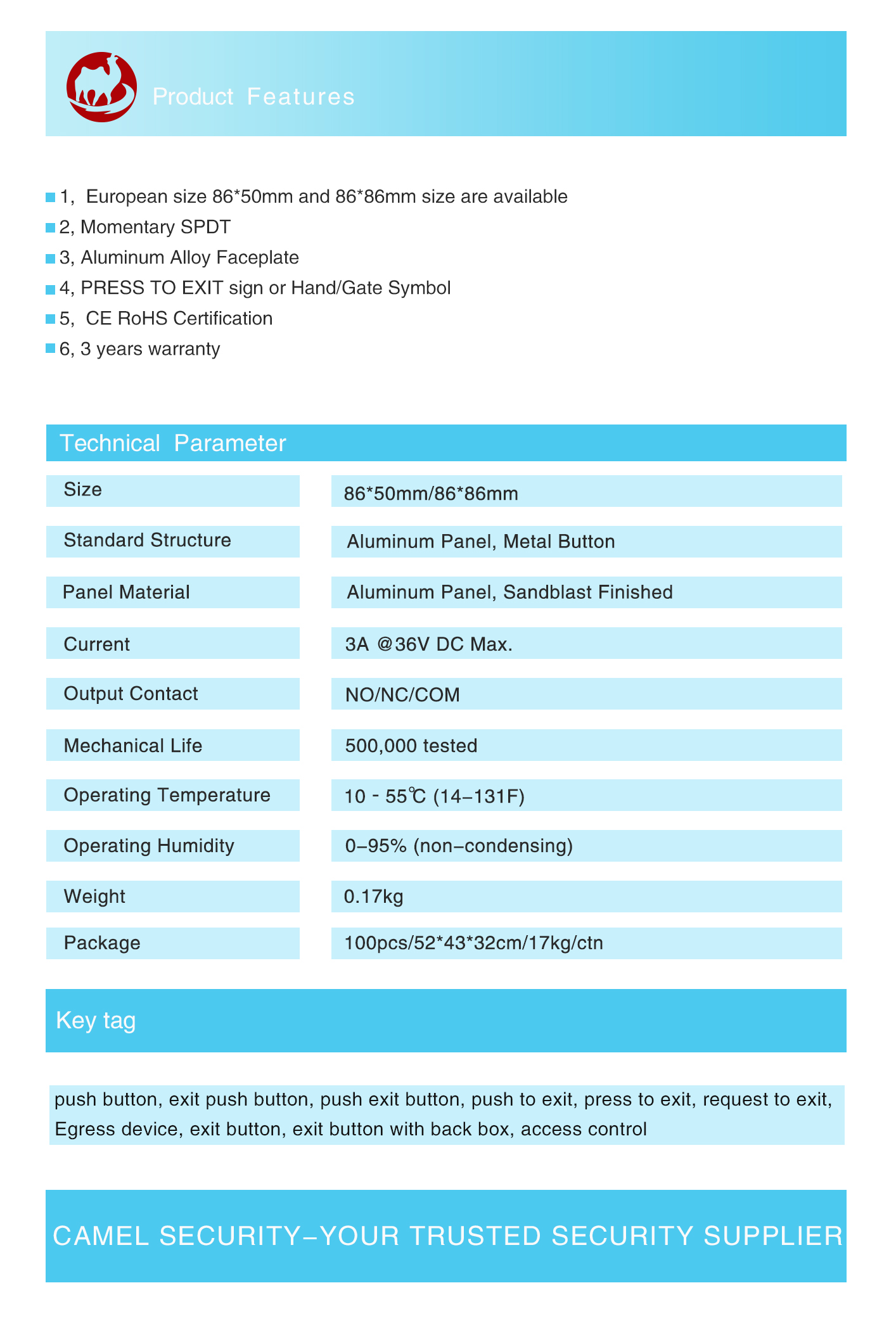

Features
1, EUROPEAN size 86*86mm
2, Momentary SPDT
3. Flat Stainless steel button with Diameter 20.8mm super contact area
4, Aluminum Alloy Faceplate, elegant design with safety handle
5, PRESS TO EXIT sign or Hand/Gate Symbol, different facelates to meet different requirements
6, CE RoHS Certification.
7, 3 years warranty, we have confidence about our products.
8.M86 Backbox is available
