Name: 140Ah Led Light Rechargeable Battery Deep Cycle With Silver Prismatic Case
Brand: Topband
Price: 1 USD

Home > Batteries >

140Ah Led Light Rechargeable Battery Deep Cycle With Silver Prismatic Case

Categories	LED Light Battery
Brand Name:	Topband
Model Number:	TB12100F-M110A
Certification:	MSDS
Place of Origin:	China
MOQ:	50pcs
Supply Ability:	450Mwh/year
Delivery Time:	2~4weeks for samples; 4~6weeks for mass production
Packaging Details:	standard export carton
Price:	Negotiable
Payment Terms:	L/C, T/T
Material:	Nano LiFePO4
Nominal voltage:	12V
Nominal capacity:	140Ah
Cycle life:	2000cycles @100% DOD
Discharge cut-off voltage:	9±1V
Dimension:	400x170x237mm
Discharging Temperature:	-20～60℃
Warranty:	2 years

Contact Now

Add to Cart

Company Info.

Shenzhen Topband Battery Co., Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

140Ah Led Light Rechargeable Battery Deep Cycle With Silver Prismatic Case

1. LED Light battery packs 12V 140Ah advantage

2. LED Light battery 12V 140A Specification

1	Nominal Voltage	12.8V
2	Normal Capacity	140Ah
3	Battery operation temperature range @charging	0~45℃
4	Normal charge voltage	14.6±0.1V
5	Recommended float charge voltage (for Standby use)	13.9±0.1V
6	Battery operation temperature range @discharging	-20~60℃
7	Output Voltage Range	8.0~14.6V
8	Discharge Cut-off voltage	8.0V
9	Dimension	Length 400mm Width 170mm Height 237mm

3. Safety Test

@Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.

No.	Items	Standards	Testing Methods
1	Short-Circuit	The battery should be no remarkable breakage, distortion. And charge normally.	Use a resistor with less than 0.05Ω to make the battery short circuit for 1 hour. The appearance and characteristics are normal.
2	Over Discharge Protection Test	The battery should be no remarkable breakage, distortion. Appearance and charge are normal.	Discharge the battery at the rate of 0.2C with the load of 30Ω for 24h . Charging for 10sec with specified adapter , and check the voltage(≥8V)
3	Impact Test	The battery should be no explosion or catch fire	Place a full charged battery on a flat and put a stainless steel stick (Diamond 7.9mm) in the middle of the battery upright . Beat the steel stick with 9.1Kg

4. Warranty:

The products will be checked everything is fine before ship out;
2 year warranty. (The products could be Exchanged or Refunded if it defected in 2 year, in the case of correct operation according to the technical specification.)
Our products have received high reputation. and we own the best after-sale service. If any problems happen, our team will do our best to solve for customers.

5. Our service

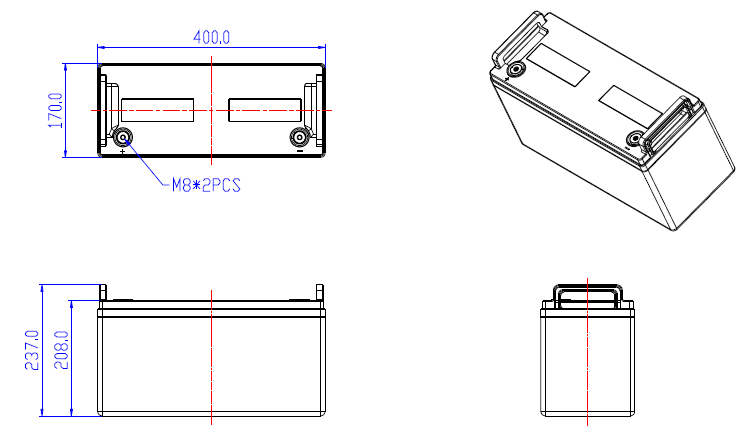

6. LED light battery 12V 100Ah dimension

Your inquiry will be warmly welcomed, looking forward to our long term cooperation.
