Portable Colorimeter Paper Testing Instruments Digital Small Volume

Categories Paper Testing Instruments
Brand Name: LIYI
Model Number: WR-10
Certification: ISO
Place of Origin: China
MOQ: 1 piece
Price: Negotiation
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 500 piece/month
Delivery Time: Within 15 days after receiving the payment
Packaging Details: Standard Export Carton Case
Color Space: CIELAB
Color Difference Formula: E*ab
Measurement Caliber: φ8mm
Illumination Condition: CIE Recommendation:8/d
Light Source: D65
Sensor: Photodiode array
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Portable Colorimeter Paper Testing Instruments Digital Small Volume

Portable Colorimeter Paper Testing Instruments Digital Small Volume



Product Introduction:
Quickly detail :

Color Space

CIELAB

Color Difference Formula

E*ab

Measurement Caliber

φ8mm

Illumination Condition

CIE Recommendation:8/d

Light Source

D65

Sensor

Photodiode array


Application:
WR-10 is an economical colorimeter. It can be used in textile, printing and dyeing, garment, footwear, leather, plastics, pigments, paints, inks, printing, hardware, toys and the other industries associated with the color.


Characterisics:
Cost-effective: while maintaining low prices, it has an excellent performance, high repeatability and high accuracy.
The most convenient colorimeter: black and white version boot automatically corrected (National Patent)
Efficient, Environmental Energy management: Removable lithium battery, the capacity reach to 3000mAH.It can measure 5000 times after charging the battery.
The real color screen display: LAB-Stereo Space Figure, the test results at a glance! Observing more comfortable!
Exquisite appearance: the machine small and exquisite appearance, comfortable hand grip, moderate weight. You don’t feel tired after measuring for a long time.
Simple operation interface: The page type, graphical operation interface design, easy to use
Multipurpose measurement: with a powder test kit (optional), to measure powder color easily.


Specifications:

Model

WR-10

Color Space

CIELAB

Color Difference Formula

E*ab

Measurement Caliber

φ8mm

Illumination Condition

CIE Recommendation:8/d

Light Source

D65

Sensor

Photodiode array

Observer

CIE 10° Standard observer

Measurement Range

L: 0 to 100

Repeated Accuracy

E<0.08

Table Difference

E<0.2

Measurement Interval

1 Sec.

Storage Capacity

Type sample data : 100 groups with testing sample data: 100 groups

Lifetime of Bulb

5 years more than 1.6 million measurements

Display Screen

TFT true color 2.8inch@(16:9)

Language

English/Simplified Chinese

Interface of External

USB2.0 (USB-B) RS-232 (115200bps)

Working Temperature Range

0-40(32-104)

Storage Temperature Range

-20-50℃(-4-122℉)

Humidity Range

Relative humidity less than 85%,without condensation

Weight

700g

Size

199*68*90mm

Package Size

400*240*340mm

Battery Charging Time

8 hrs

Battery

Li-ion battery, 5000 times Measurement

Standard Accessories

AC adapter/ 3000mAH Li-ion battery

Optional Accessories

Flour measuring device/Micro printer

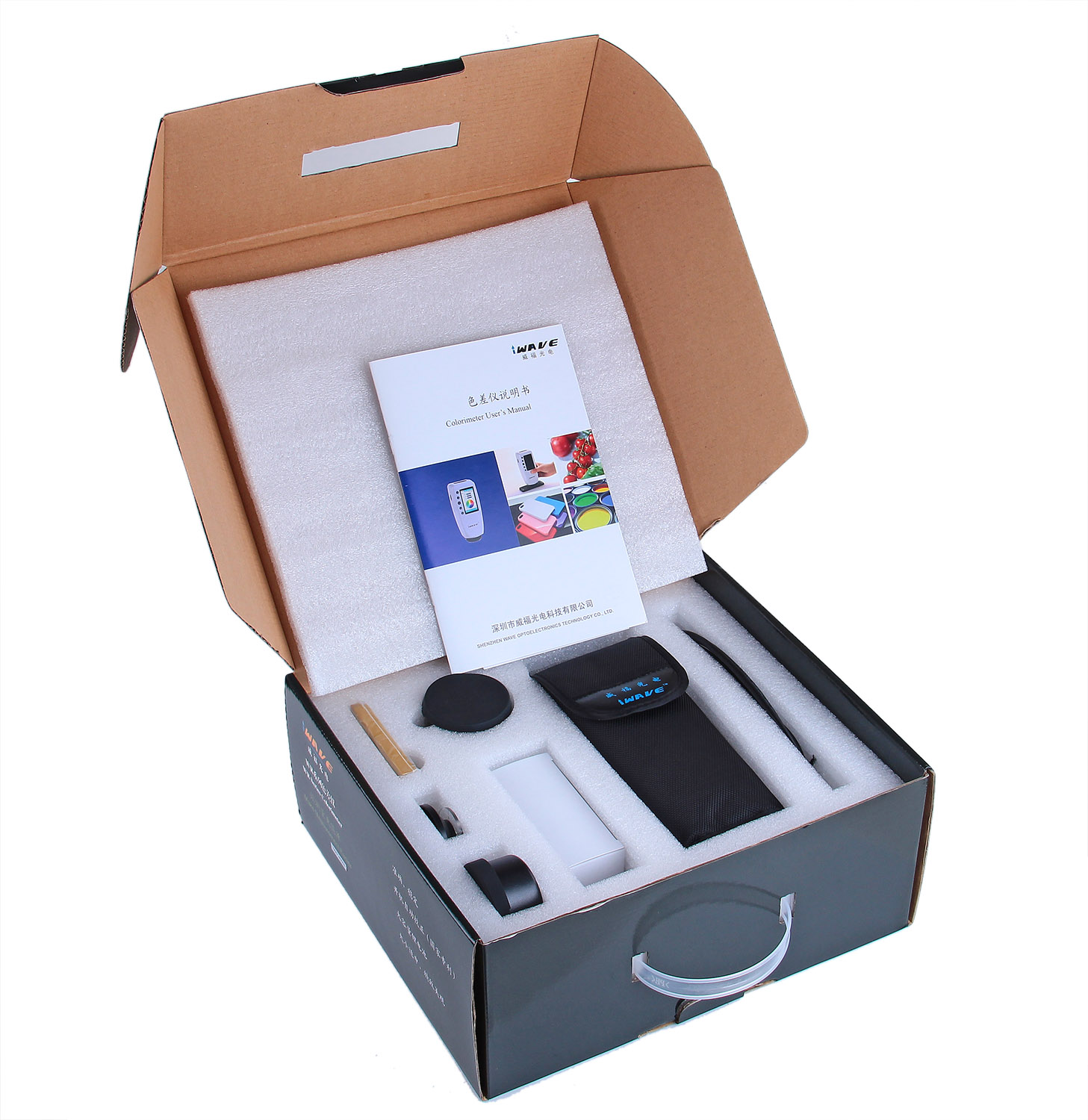

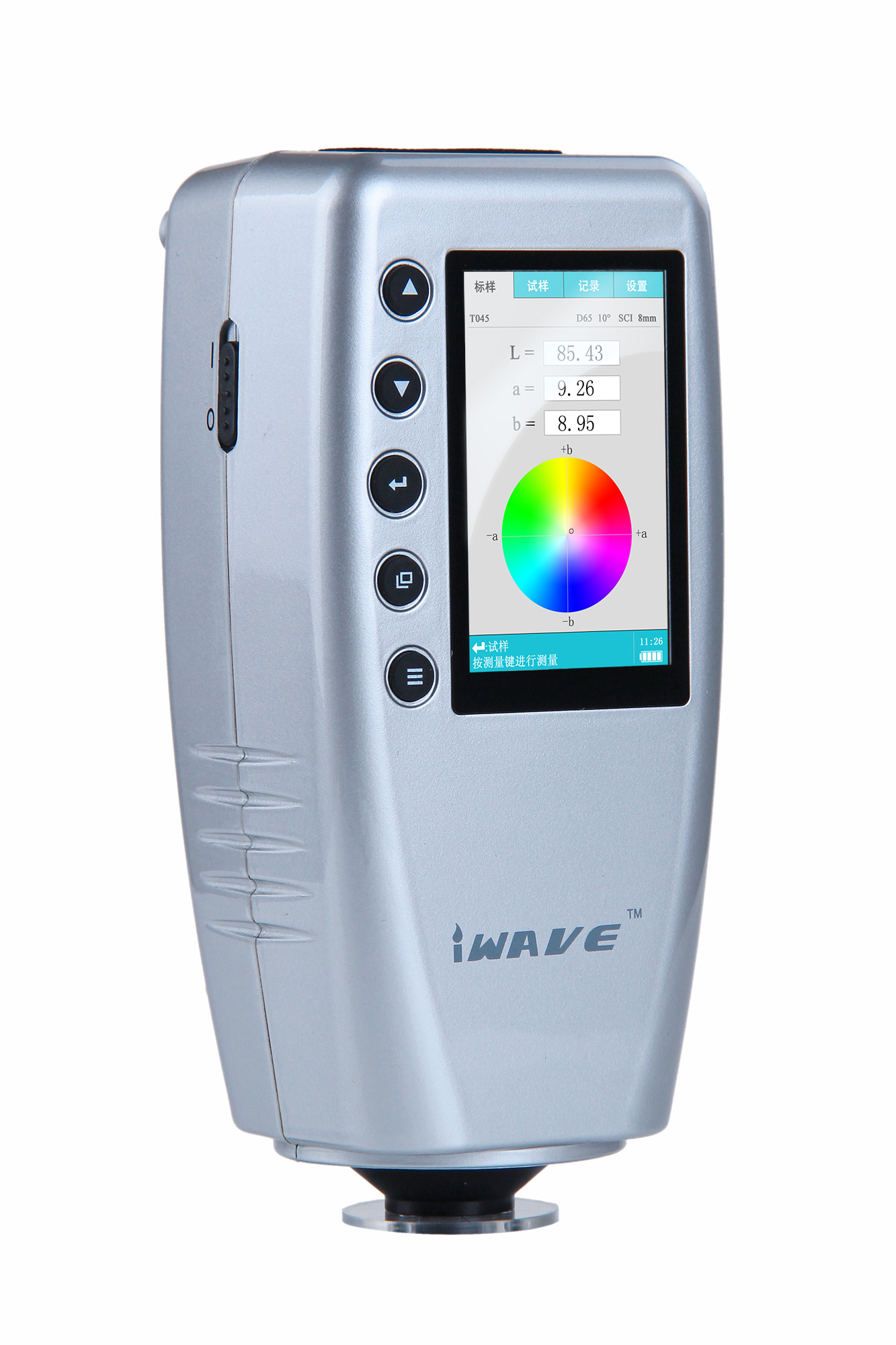

Pictures:


Quality Portable Colorimeter Paper Testing Instruments Digital Small Volume for sale
