Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO

Categories Ridge Cap Roll Forming Machine
Brand Name: HC
Model Number: HC280
Certification: ISO/CE
Place of Origin: Botou Hebei China
MOQ: 1set
Price: 13000-29000USD
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Delivery Time: 30days
Packaging Details: Main machine is nude,the computer control box is packed by carton box
color: blue
type: automatic
control system: PLC control
cutting method: hydraulic cut
per month: 30 sets
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO


Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine



Total length of equipment

5.5m

(depend on design)


Width

0.85m

(depend on design)


height

1.2m

(depend on design)

Motor Power3Kw+3KwOperating Voltage380V
Production speed8 - 10 m / min
transfer methodChain drive
Machine forming shaft

A total of 10 rows of large shaft:

250H steel, vertical plate 12mm

Adjust the setUsing 45 # steel seamless steel pipe finishing
Wheel material45 # steel hard chrome plated
Shaft material45 # steel shaft diameter: 65mm solid shaft

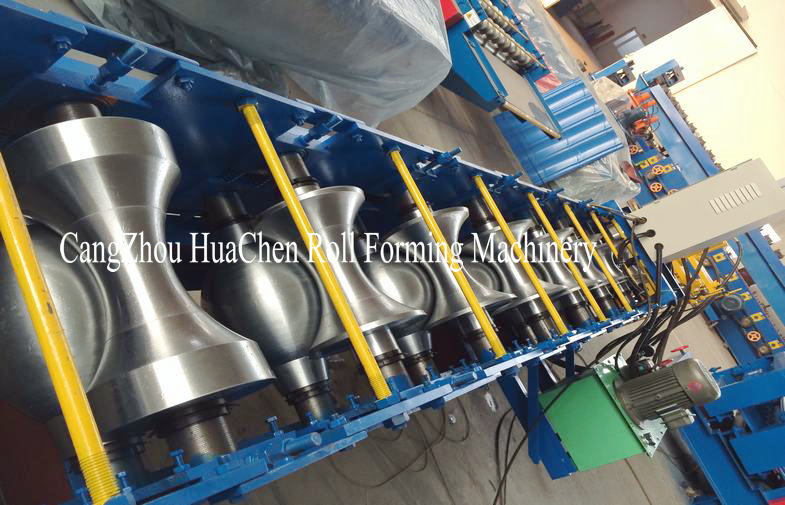

Forming part

Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast.
Numerical control system

PLC panel,

KEL-320 displa

counterThe use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP
Cut3Kw pumping station, shear pressure type equipment
Pressure plate thickness0.3—0.8mm
Random attachments

The use of a manual,

a gift rack

warranty period12 months

Description:


Main parameter

No.

Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

Rollers

15rows

4

Dimensions

8100*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting


Application

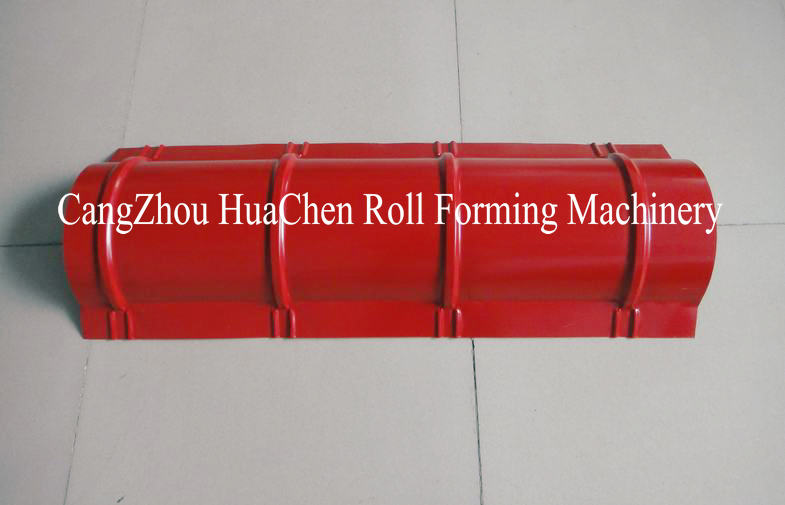

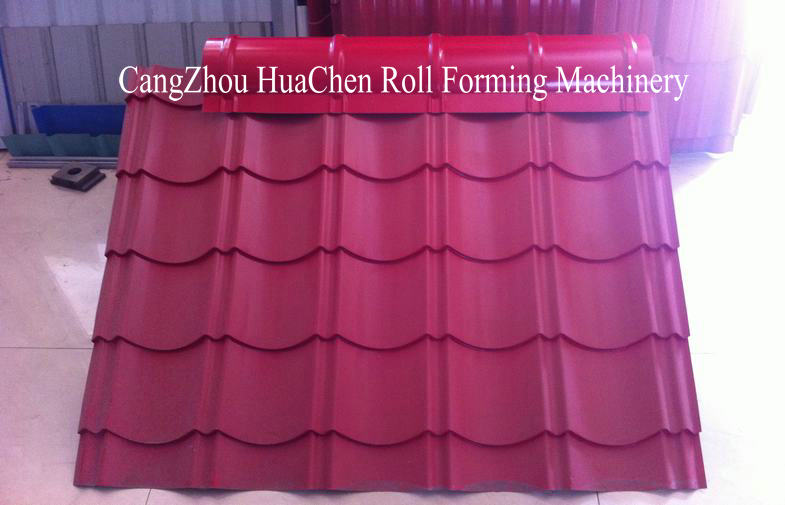

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.


Competitive Advantage


1. save space

2. easy install

3. perfect service

4. excellent quality

5. save freight
