Accuracy NTC Temperature Sensor , Platinum Resistance Temperature Detector

Accuracy NTC Temperature Sensor , Platinum Resistance Temperature Detector

Description

M-series PRTDs are designed for large volume applications where long term stability, interchangeability and
accuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC,
Energy management, Medical and Industrial equipment.

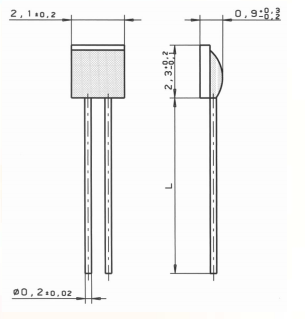

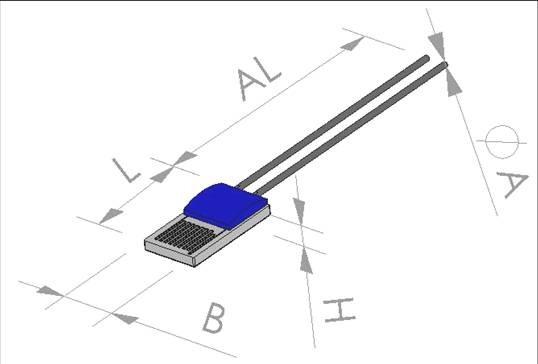

The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.

Specification

Specification DIN EN 60751 (according to IEC 751)

Temperature range -70°C to +500°C (continuous operation)
(temporary use to 550°C possible)
Tolerance Class B: -70°C to +500°C
Tolerance Class A: -50°C to +300°C
Tolerance Class 1/3 B: 0°C to +150°C

Temperature coefficient TCR = 3850 ppm/K

Leads Pt clad Ni- wire
Recommend connection technology:
Welding, Crimping and Brazing

Lead lengths (L) 10mm ±1mm

Long-term stability max. R0-drift 0.04% after 1000h at 500°C

Vibration resistance at least 40g acceleration at 10 to 2000 Hz,
depends on installation

Shock resistance at least 100g acceleration with 8ms half sine
wave, depends on installation

Environmental conditions unhoused for dry environments only

Insulation resistance > 100 MΩ at 20°C; > 2 M Ω at 500°C

Self heating 0.4 K/mW at 0°C

Response time water current (v= 0.4m/s): t0.5 = 0.05s
t0.9 = 0.15s
air stream (v= 2m/s): t0.5 = 3.0s
t0.9 = 10.0s

Measuring current 100Ω: 0.3 to 1.0mA
500Ω: 0.1 to 0.7mA
1000Ω: 0.1 to 0.3mA
(self heating has to be considered)

Note Other tolerances, values of resistance and wire lengths are available on request.
