Digital Color Ultrasound Scanner Portable Color Doppler Machine BIO 5000C With 10.4 Inch LCD Screen

Categories Color Doppler Ultrasound Scanner
Brand Name: BIO
Model Number: 5000C
Place of Origin: China
MOQ: 1 unit
Payment Terms: Credit card, Paypal, T/T
Delivery Time: 7 working - days since getting full payment
Supply Ability: 100 units / month
Packaging Details: 1 unit/carton
Display mode: 4B; M,B/M; CFM; PDI; PW; THI
Gray sacle: 256
Display: 10.4 inch color LED monitor
Transducer frequency: 2-12MHz
Adapter rating: 100-240V~1.2-6.0A
 Power Frequency: 50-60Hz
Output of adapter: DC12.8V 3.0A
Power consumption: ≤100VA
U-disk capacity: 16G
Dual-mode TV output: PAL/NTSC
Probe connector: 2
Language: English/Chinese
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Digital Color Ultrasound Scanner Portable Color Doppler Machine BIO 5000C With 10.4 Inch LCD Screen

Digital Color Ultrasound Scanner Portable Color Doppler Machine BIO 5000C With 10.4 Inch LCD Screen​


Product Introduction


BIO 5000C is a portable Color Doppler,designed and produced by our professional team,leading image process technical and advanced and practical clinic solution method. It’s highly cost effective and reliability. It’s the ideal option for primary hospitals,clinics,etc.


Measurement report


OB measurement report, GYN measurement report, cardiac measurement report, urology measurement report and other measurement report, automatically store the measurement result and generate report.


Reasonable Humanization Design


1. 10.4 inch color LED full screen display,angle adjustable

2. One-key-light keyboard function for black room use

3. One button operation including one-key storage image/ review/print,etc

4. Quick look up stored image function to improve work efficiency

5. Multifunctional knob design,achieve one-key quick adjustable in multi-mode

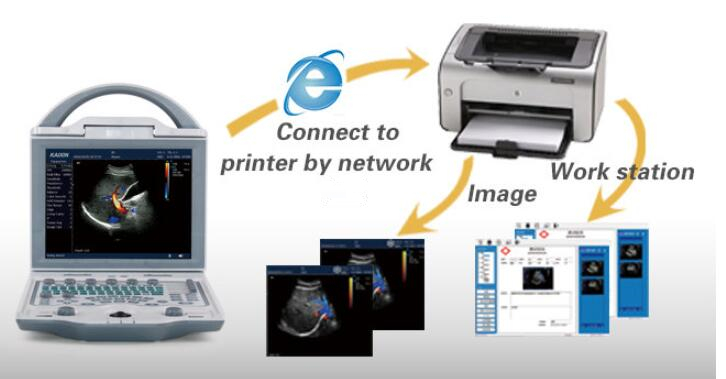

Powerful Data Management


1. Optimize checking image function,realize 1-2 second response

2. Intelligent user defined,one-key review and storage function

3. Neoteric internal workstation multi-plan module,quickly finish data,report,realize process multi medical histories function


Digital Specification


Monitor10.4 inch color LED monitor
Operation Mode4B; M,B/M; CFM; PDI; PW; THI
Gray / Color scale256
Adapter rating100-240V~1.2-6.0A
Power Frequency50-60Hz
Output of adapterDC12.8V 3.0A
Power consumption≤100VA
Main unit sizeapprox. 256*150*326(mm, L*M*H)
Weight of main unitapprox. 4.5kg(excluding accessories)
ReportOB, Cardio, Urological report
U-disk capacity16G
Dual-mode TV outputPAL/NTSC
Probe connector2
LanguageEnglish/Chinese

Operation modeB,B/B,4B mode,M,B/M mode
Color flow mode(CFM)
Power Doppler mode(PDI)
Pulsed-wave Doppler(PW)
Tissue harmonic imaging(THI)
Ultrasonic imaging technology1. High precision digitizing continued wave former
2. Dynamic frequency blend imaging technology
3. High precision delay point-by-point dynamic receiving focus
4. Ultra-broadband imaging technology
5. Automatic optimizing process image technology
6. Automatic vessel imaging technology
7. Automatic Doppler imaging technology
8. THI structure harmonic imaging technology

Standard configurationOptional configuration
Main unit:1 pc6.5MHz multi-frequencyMicro-Convex probe:1pc;
probe sockets:27.5MHz multi-frequency high linear probe:1pc;
3.5MHz convex probe:1pcVideo printer
CD: 1pcTrolley
Reticle: 1pc
