| Categories | Air Flow Control Valves |
|---|---|
| Place of Origin: | China |
| Brand Name: | Sunrise or OEM |
| Model Number: | KLA-06,KLA-08,KLA-10MKLA-15,KLA-15,KLA-20,KLA-25 |
| MOQ: | 1 piece |
| Price: | USD12-18 |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 10000 pcs per month |
| Company Info. |
| FLY AUTOMATION |
| Verified Supplier |
| View Contact Details |
| Product List |
Specification:
| OrderingCode | KLA-06 | KLA-08 | KLA-10 | KLA-15 | KLA-20 | KLA-25 | KLA-32 | KLA-40 | KLA-50 | |
| Nominal Diameter(mm) | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| Fluid Temperature( ºC) | -5~50 | |||||||||
| EnviromentalTemperature( ºC) | -10~55 | |||||||||
| Effective cross-sectional area(mm2) | P--A | 5 | 10 | 20 | 40 | 60 | 110 | 190 | 300 | |
| A--O | 10 | 20 | 40 | 60 | 110 | 190 | 300 | 400 | 650 | |
| Lifespan( Ten thousand times) | >200 | >150 | >50 | |||||||
Symbol:

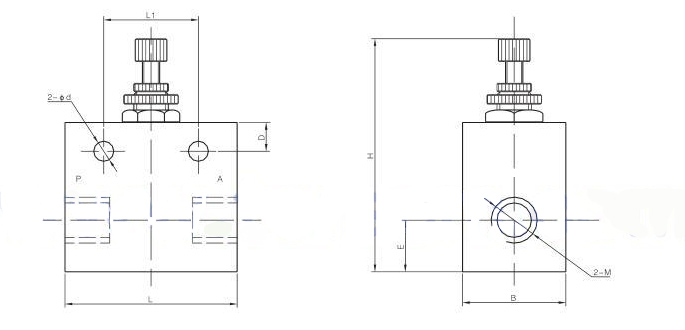

Dimension(mm):
| Code | L | L1 | H | B | Connection Thread | E | D | d |
| KLA-06 | 40 | 32 | 61~70 | 20 | M10x1(G1/8) | 16 | 4 | 4.2 |
| KLA-08 | 40 | 32 | 61~70 | 20 | M12*1.25(G1/4) | |||
| KLA-10 | 50 | 37 | 79~88 | 25 | M16x1.5(G3/8) | 19.5 | 6 | 5 |
| KLA-15 | 60 | 45 | 88~102 | 28 | M20x1.5(G1/2) | 25 | 7.5 | 7.2 |
| KLA-20 | 120 | 60 | 127~139 | 58 | M27x2(G3/4) | 29 | 9 | 7 |
| KLA-25 | 120 | 60 | 127~139 | 58 | M33x2(G1) | |||
| KLA-32 | 160 | 82 | 207~225 | 78 | M42*2(G1 1/4) | - | - | - |
| KLA-40 | 160 | 82 | 206~224 | 78 | M48x2(G1 1/2) | - | - | - |
| KLA-50 | 168 | 90 | 240~222 | 95 | M60x2(G2) | - | - | - |
|
