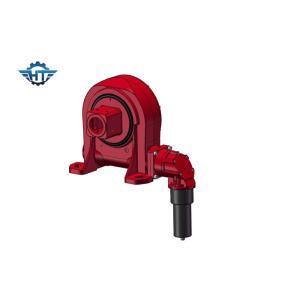

Vertical Solar Worm Gear Slew Drive , Solar Tracker Drive With IP66 Protection

Categories Solar Slew Drive
Brand Name: HangTuo
Model Number: VE6
Certification: CE, ISO9001
Place of Origin: China
MOQ: 1 piece
Price: USD 280~330/ pc
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Delivery Time: 15~45 days
Packaging Details: plywood box
Model: 6 inch
Gear ratio: 61:1
Efficiency: 40%
Precise: ≤ 0.1
Driver: Electric Motor
Type: Vertical Mounted
Application: Solar Tracker
Color: As Requested
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

    Vertical Solar Worm Gear Slew Drive , Solar Tracker Drive With IP66 Protection


    6 Inch Vertical Solar Worm Gear Slew Drive With IP66 Protection For Solar Tracking System


    Description


    VE6 worm gear slewing drive is a compact solution with high transmission, consisting of a slewing ring with external gear, combined with an adjoining geared worm shaft.


    Feathures


    By the self-locking gearset, no break is necessary on the driving engine.

    Available with directly mounted planetary geared motors.

    Worm drive—higher wear-resistance of worm gear drive, which can load strong output torque and tilting moment torque with the well performance of stability and reliability. The worm drive is also available for higher tracking precise field.


    Drawing of VE6



    Data Sheet of VE Slew Drives


    ModelRatioRated Output Torque(N.m)Tilting Torque(N.m)Holding Torque(N.m)Axial Load(kN)Radial Load(kN)EfficiencyPrecision (°)Self-lockingWeight (kg)
    3"31:160015001800221540%≤0.1Yes12
    5"37:180050009200162740%≤0.1Yes18
    7"57:11750700013200345840%≤0.1Yes32
    8"51:122501120020400508040%≤0.1Yes28
    9"61:1225016000308006013040%≤0.1Yes52
    12"78:1430025000405607719040%≤0.1Yes65
    14"85:15600480004420011023040%≤0.1Yes88
    17"102:16750670005304014239040%≤0.1Yes135
    21"125:116000890006500033764040%≤0.1Yes192
    25"150:1214501120008900047695040%≤0.1Yes251

    Advantages


    1. Rotate of ±60°, hard stop inside

    1. Strong overturning moment based on slewing ring

    2. Adopt enveloping worm drive

    3. Drive larger load for using multi tooth contact

    4. Better static self-locking function


    Applications


    Include solar trackers, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger derricks, automotive lifts and wind turbines, dishes, satellite antenna etc.
